Kirchhoff Problem 2

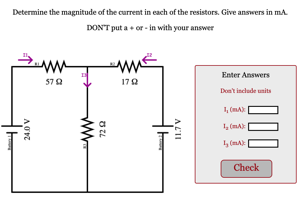

Kirchhoff Problem 2 Picture
In this problem you will have to find the current passing through the three resistors present in the circuit. There will be multiple power supplies, so you must use Kirchhoff's Circuit Laws to solve the problem.

When you are ready to start the problem, click on the begin button below.

Name:
Begin
See Available Languages
Your browser does not support HTML 5.0 Canvas...get a better browser!!!
Determine the magnitude of the current in each of the resistors. Give answers in mA.

DON'T put a + or - in with your answer

Enter Your Answer Below
Don't Enter Units
I1 (mA):
I2 (mA):
I3 (mA):
Check
